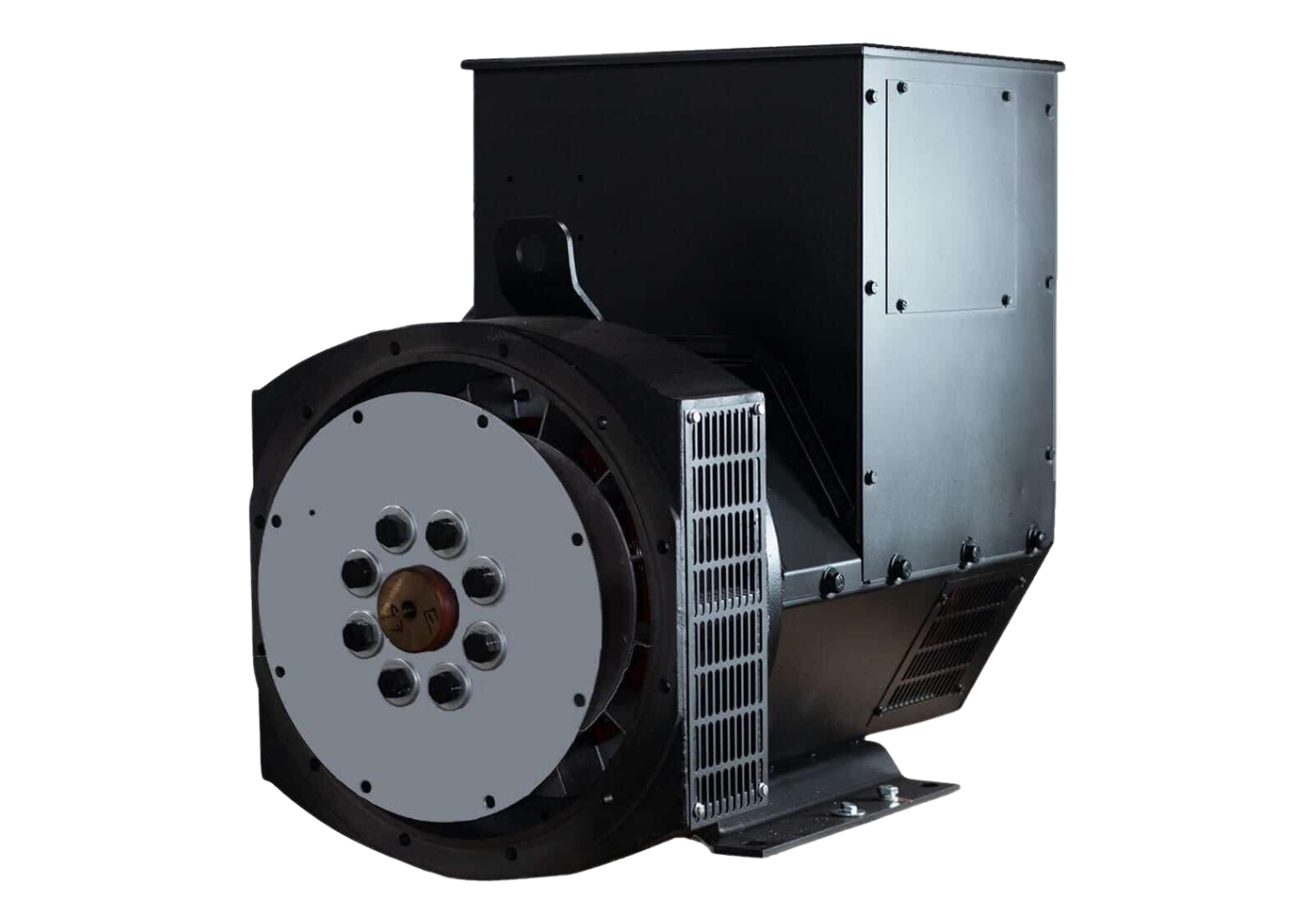

CGG 274D 100KW 1 Phase Single Bearing

• CGG274D 100KW
• Equipped with PMG (300% boost of rated power for 5 seconds)
• MX321 AVR (Automatic Voltage Regulator)
• Winding 06 – 4 Wire 1 Phase (120/240V)
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• 1.0 Power Factor
• Temp Rise/Ambient (125/40)
• Unit Weight: 1030lbs.
• Single Bearing (direct connect through SAE bellhousing & flywheel)
• 143 HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 200 HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain. They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marathon, Leroy Somer, and Lima Mac.
