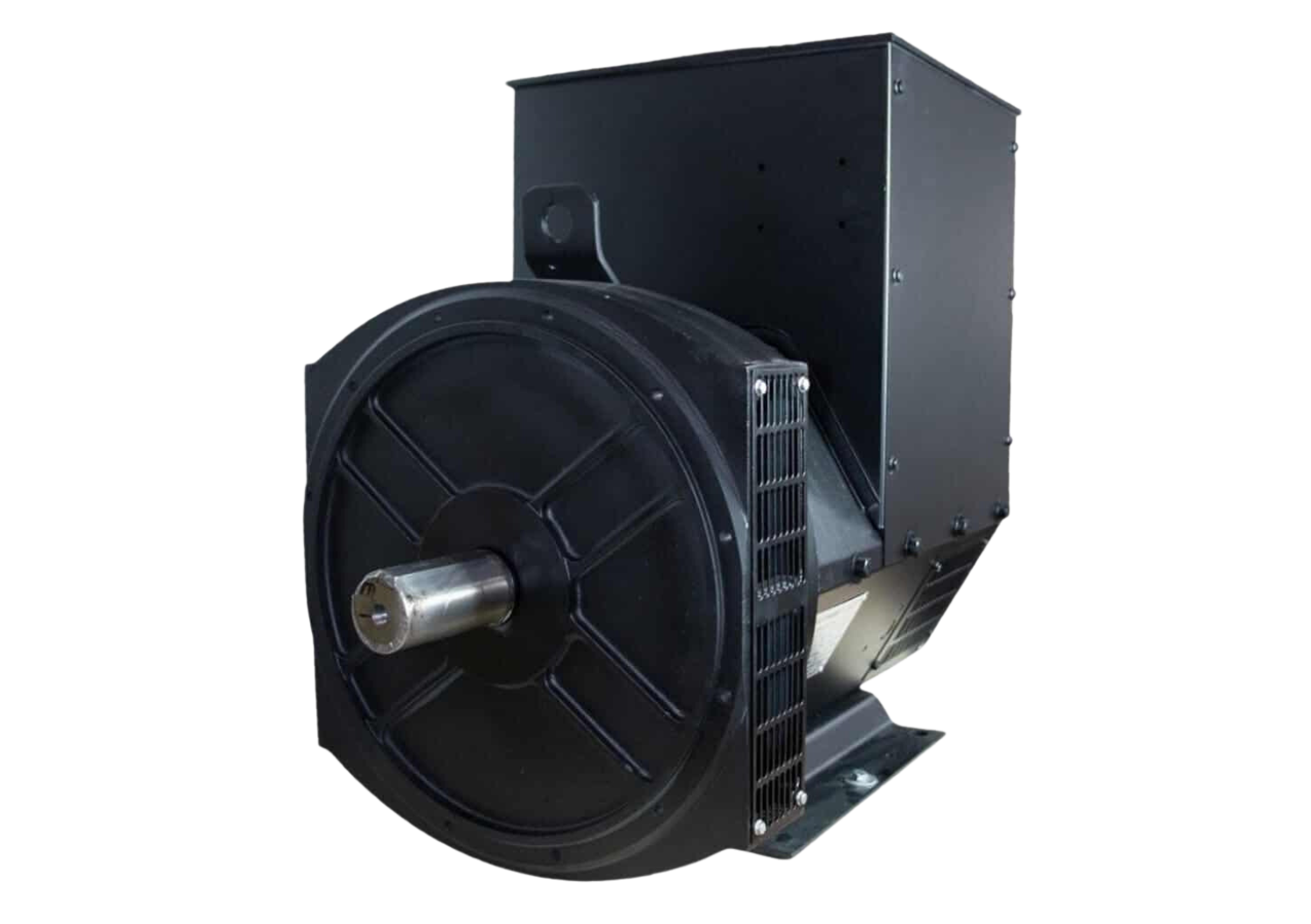

CGG 224G 75KW 1 Phase Double Bearing

• CGG224G 75KW
• Auxiliary Boost Winding (150% boost of rated power for 5 seconds)
• AS440 AVR (Automatic Voltage Regulator)
• Winding 06 – 4 Wire 1 Phase (120/240)
• Class H Insulation
• 60 HZ
• 4 Pole 1800 RPM
• 1.0 Power Factor
• Temp Rise/Ambient (125/40)
• Unit Weight: 835lbs.
• Double Bearing (uses shaft)
• 107 HP Diesel engine required for full output, may use engine with less HP but will not produce full output
• 150 HP Gas engine required for full output, may use engine with less HP but will not produce full output

These generators are of the synchronous drip proof salient and are very heavy and rugged in construction and easy to maintain. They are built to IEC34, Nema MG1-22, GB755, CSA C22.2-100, VDE 0530 and ASB59 standards. Replaces the following: Stamford, Mecc-Alte, Marathon, Leroy Somer, and Lima Mac.
