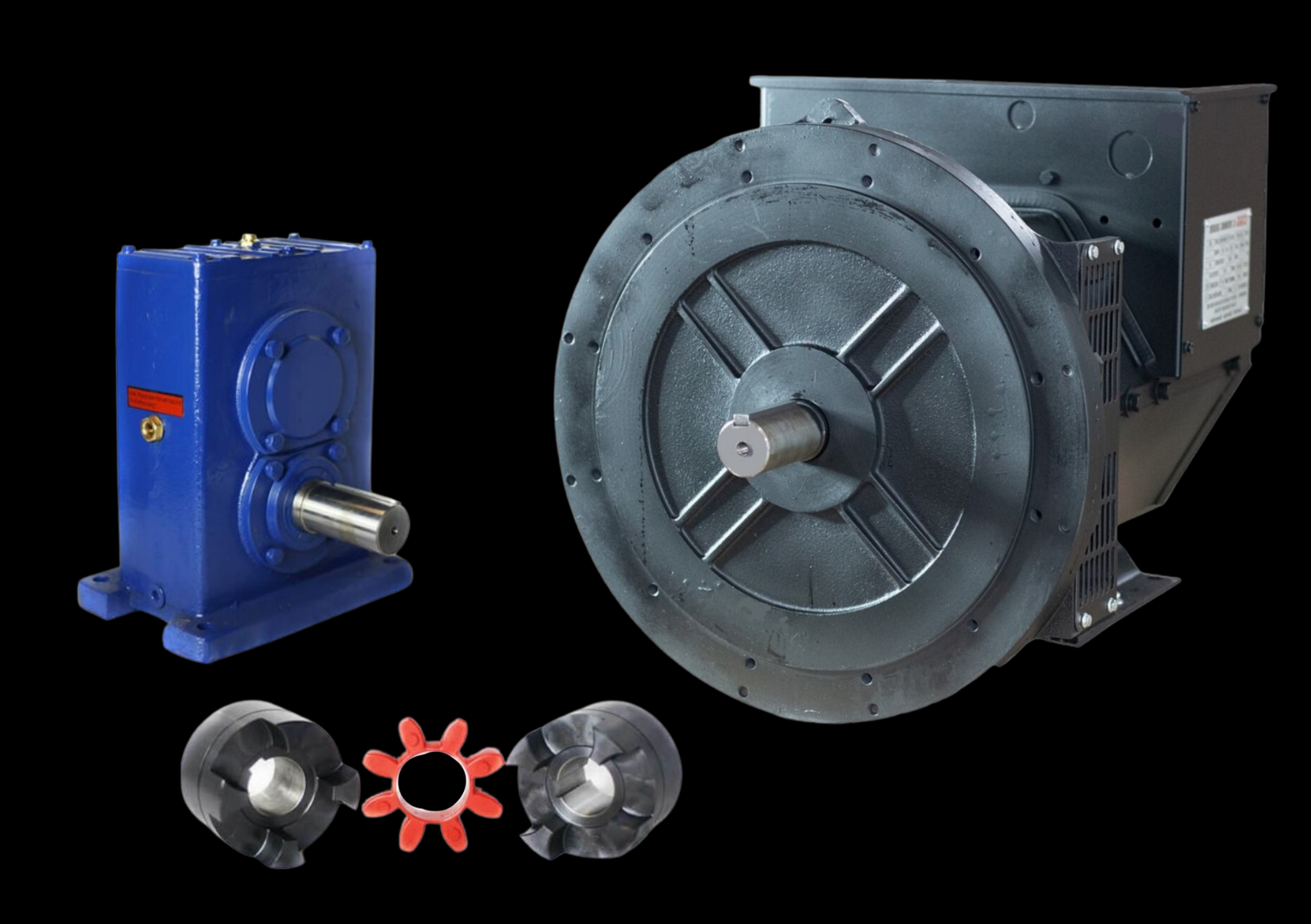

CGG 184E 21KW 1Ph/24KW 3Ph PTO Combo Kit

• CGG Generator Head
• PTO Generator Gearbox
• Metric Coupler
• FREE Volt/Frequency Meter

• 21KW 1 Phase / 24KW 3 Phase
• 21,000 Watts 1 Phase / 24,000 Watts 3 Phase
• 60 Hertz
• 4 Wire Single Phase / 12 Wire Three Phase
• 1800 RPM / 4 Pole
• AVR Included
• Requires 34 HP Diesel Engine for full output
• Requires 48 HP Gasoline Engine for full output

• Requires 1.6 liters of 90 to 120 wt. gear oil; this is like rear end gear oil for a car (do not overfill, it will come out of the vent on top).
• Oil is not pre-installed in the gearbox.

• 540 to 1800 rpm rated for equipment requiring 60hp (horsepower) continuous, 70hp standby
• Tractor can be rated for more than 60hp or less than 60hp For generators up to 40kw continuous 52kw standby
• 1 3/8 inch six spline input shaft
• 42mm smooth keyed output shaft
• Output shaft turns in opposite direction from input shaft

Choose your desired gearbox from the drop down menu labeled “Gearbox Ratio”

3.55 PTO Gearbox Dimensions

3.55 PTO Gearbox FAQ

• Requires 1.6 liters of 90 to 120 wt. gear oil; this is like rear end gear oil for a car (do not overfill, it will come out of the vent on top).
• Oil is not pre-installed in the gearbox.

• 400 to 1800 rpm rated for equipment requiring 40hp (horsepower) continuous, 50hp standby
• Tractor can be rated for more than 40hp or less than 40hp for generators up to 30kw continuous 40kw standby
• 1 3/8 inch six spline input shaft
• 32mm smooth keyed output shaft
• Output shaft turns in opposite direction from input shaft

Choose your desired gearbox from the drop down menu labeled “Gearbox Ratio”

4.5 PTO Gearbox Dimensions

4.5 PTO Gear Box FAQ

• 1/2 coupler
• Urethane spider insert included with a purchase of 2 halves
• Handles up to 60 HP
• Steel jaw
• FL/CL225
• L225 LoveJoy replacement
• LoveJoy 48/60 replacement
• Rotax size 48 replacement
